HYPEBOX®
THE INTERACTIVE SEE-THROUGH EXPERIENCE
Discover the breathtaking showcase opportunities, products in conjunction with digital touch media.
Whether high-end products in the showroom, at trade shows or in stores. This tool is like a smart window – the transparent multitouch display introduces in a new era of product presentation.
- High Display Transparency – Clear and bright colors
- True MultiTouch – Plug and Play easy setup
- Powerful LED Backlight – High reliability and lifetime
- Toughened safety glass, rugged metal housing

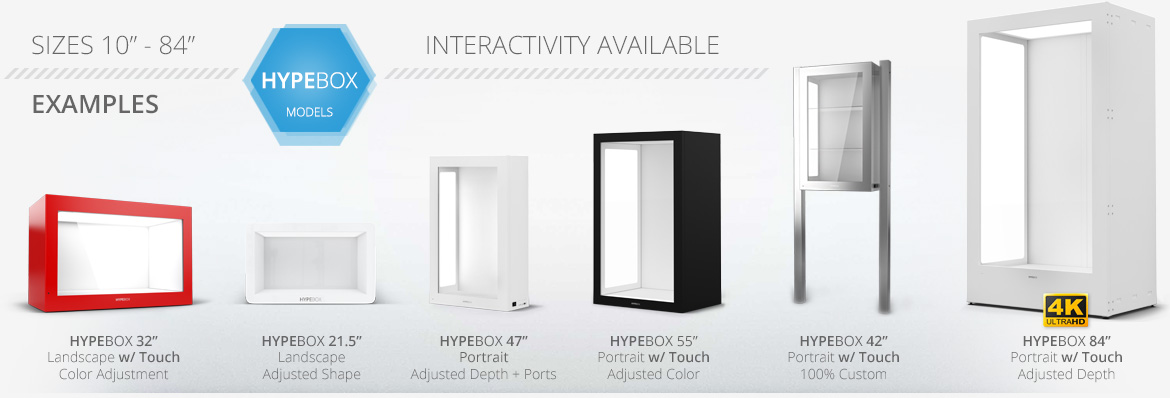

- Various sizes available, from 32" to 84"
SUPERIOR QUALITY FEATURES
Real MultiTouch
10 simultaneous touch points
Suitable for the use of gestures
Transparency & Resolution
15% Superb Transparency
Full-HD 1920x1080px Resolution
Ultra High Contrast
Brilliant & luscious colors
Powerful black pixel covering
LED Showcase
Illuminated Boxes with integrated electronics and connections
Learn how HYPEBOX increases Brand Awareness & Sales in Retail Stores.
Experiential Marketing
HOW DISPLAY TRANSPARENCY WORKS
UNBELIEVABLE TRANSPARENCY & COLOR CONTRAST
TECHNICAL DETAILS
| Display diagonal | 812.8 mm (32") |
| Resolution | 1920 x 1080 px @ 60 Hz |
| Contrast | 3.000:1 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal 178° / Vertical 178° |
| Number of Colors | 16,7 Mil. |
| Response Time | 8 ms |
| Connections | DVI, USB |
| Controls | Keypad |
| Operating Conditions | Storage -20°C to 65°C / Working 0°C to 40°C |
| Delivered Contents | Power Cord, USB Cable, Mediaboard / Connection Board |
| Display diagonal | 1081.2 mm (43") |
| Resolution | 1920 x 1080 px @ 60 Hz |
| Contrast | 3.000:1 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal 178° / Vertical 178° |
| Number of Colors | 16,7 Mil. |
| Response Time | 8 ms |
| Connections | DVI, USB |
| Controls | Keypad |
| Operating Conditions | Storage -20°C to 65°C / Working 0°C to 40°C |
| Delivered Contents | Power Cord, USB Cable, Mediaboard / Connection Board |
| Display diagonal | 1229.3 mm (49") |
| Resolution | 1920 x 1080 px @ 60 Hz |
| Contrast | 3.000:1 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal 178° / Vertical 178° |
| Number of Colors | 16,7 Mil. |
| Response Time | 8 ms |
| Connections | DVI, USB |
| Controls | Keypad |
| Operating Conditions | Storage -20°C to 65°C / Working 0°C to 40°C |
| Delivered Contents | Power Cord, USB Cable, Mediaboard / Connection Board |
| Display diagonal | 1397 mm (55") |
| Resolution | 1920 x 1080 px @ 120 Hz |
| Contrast | 3.000:1 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal 178° / Vertical 178° |
| Number of Colors | 16,7 Mil. |
| Response Time | 8 ms |
| Connections | DVI, USB |
| Controls | Keypad |
| Operating Conditions | Storage -20°C to 65°C / Working 0°C to 40°C |
| Delivered Contents | Power Cord, USB Cable, Mediaboard / Connection Board |
| Display diagonal | 2133 mm (84") |
| Resolution | 3840 x 2160px px @ 60 Hz |
| Contrast | 3.000:1 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal 178° / Vertical 178° |
| Number of Colors | 16,7 Mil. |
| Response Time | 8 ms |
| Connections | DVI, USB |
| Controls | Keypad |
| Operating Conditions | Storage -20°C to 65°C / Working 0°C to 40°C |
| Delivered Contents | Power Cord, USB Cable, Mediaboard / Connection Board |
| Material | Ruggedized metal housing 1.5mm strong Aluminium |
| Safety Glass | 4mm Safety Glass |
| Coloring | Powder-coated white (matt) |
CELL IMAGING TECHNOLOGY
- True MultiTouch with up to 10 touch points
- up to 10 independent Light Processors (depends on size)
- Ultra-precise touch recognition.
- Object size and shape recognition
- Water-spill proof
| Touch Points max. | Detects 10 touch points simultaneously |
| Sample Rate | Up to 200 fps |
| Report Resolution | 32768 x 32768 |
| Finger Touch Accuracy | 2.7 mm |
| Activation Force | No pressure required |
| Touch Duration | Unlimited |
| Touch Method | Naked fingers, gloved fingers or any other stylus with a minimum of 3mm size shape recognition (fist, palm) |
| Object recognition | Object shape recognition |
| Calibration | 4-Point Calibration |
| Interface | USB |
| Software Development | PQ Labs Multi-Touch SDK (C / WPF / C# / Flash / Java) Surface SDK Windows Native Touch TUIO |
| Supported OS | Windows 10/8/7, Mac OS X, Ubuntu/Fedora, Android |

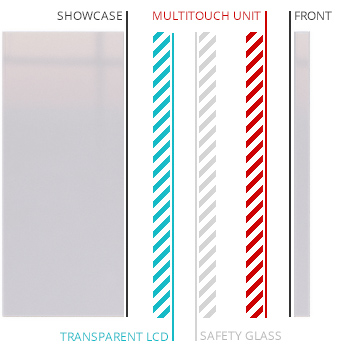

HYPEBOX TOUCH - EXPLODED VIEW

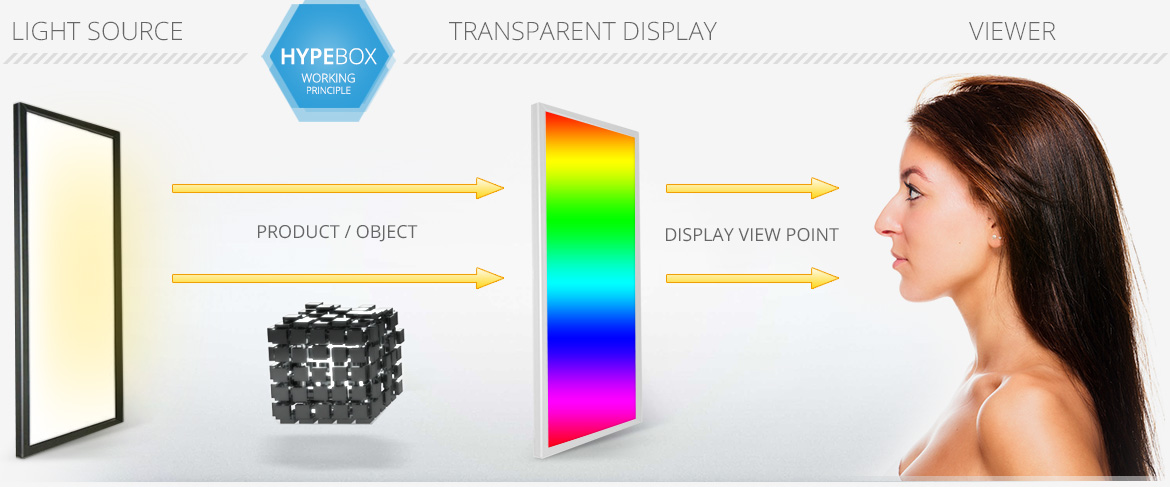

HYPEBOX® WORKING PRINCIPLE
GET IN TOUCH WITH US
You`re interested in transparent MultiTouch Displays or Showcases?
Do not hesitate to contact us! In a telephone call, we answer your questions or arrange an appointment.

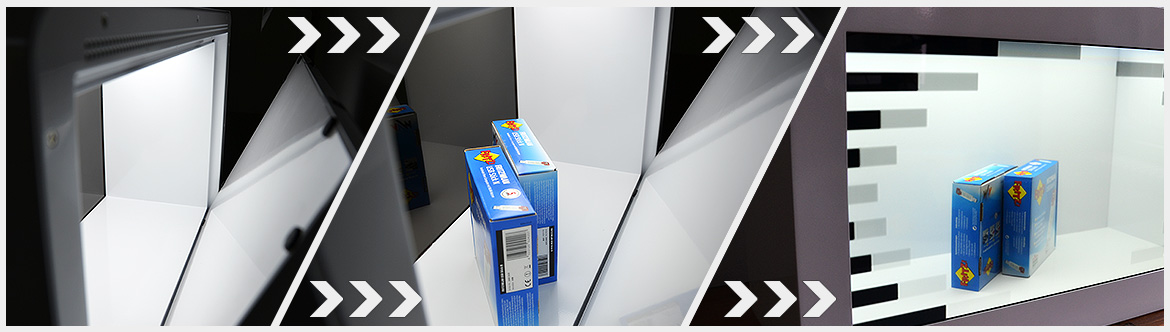

HOW TO CHANGE THE CONTENTS
1. OPEN BOX FROM BEHIND // 2. PLACE OR REPLACE YOUR PRODUCT // 3. CLOSE BACKDOOR AND ENJOY
