Transparent OLED Touch Display
The MIRAGE Series is a brand-new type of transparent Screen, which makes it possible to achieve transparency even without a backlight. The Transparent OLED consists of self-emitting diodes which can operate in any environment. Without the need of a backlight or showcase, the MIRAGE see-through OLED screen can be placed in the middle of a room or integrated into a wall - the functionality is still given!
| MIR55L | MIRAGE Transparent OLED 55" Display |
| MIR55FFL | MIRAGE Transparent OLED 55" MultiTouch Display |
| MIRS55L | MIRAGE Transparent OLED 55" Display Stele |
| MIRS55FFL | MIRAGE Transparent OLED 55" MultiTouch Display Stele |
GET IN TOUCH WITH US
You`re interested in the transparent OLED Displays or Stele?
Do not hesitate to contact us! In a telephone call, we answer your questions or arrange an appointment.
| Display diagonal | 1388 mm (55") |
| Resolution | 1920 x 1080 px @ 120 Hz |
| Transparency | 45% Transmittance |
| Panel Type | AMOLED (Active Matrix Organic Light-Emitting Diode) |
| Active Display Area | 1209.6 x 680.4 mm |
| Brightness Fullscreen | 150 cd/m2 (typical), 165 cd/m2 (maximum, center of the screen) |
| Brightness Peak 1% | 500 cd/m2 (typical), 550 cd/m2 (maximum, center of the screen) |
| Contrast | 100.000:1 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal 178° / Vertical 178° |
| Number of Colors | 1.07Billion, 10bit |
| Response Time | 1 ms |
| Color Gamut | 100% NTSC |
| Pixels Per Inch / Pixel Pitch | PPI 40 / 0.063 |

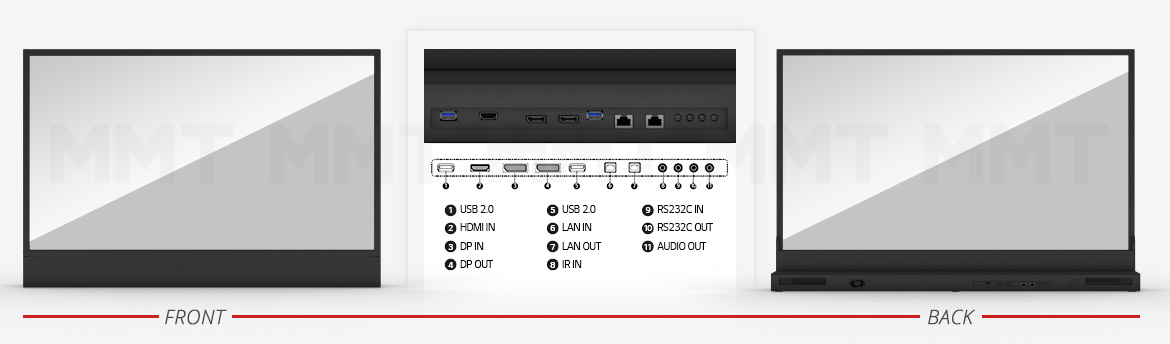

| Connections | HDMI, DisplayPort, RS232, Video, Y/C, DVI-I (digital/analog) |
| Controls | Keypad, IR Remote Control |
| Orientation | Landscape & Portrait |
| Touch Technology | InGlass™ - Total Internal Reflection |
| Touch Points max. | Detects 40 touch points simultaneously |
| Touch Response Time | <15 ms |
| Finger Touch Accuracy | <2 mm |
| Touch Reporting Rate | 100 Hz |
| Touch Resolution | 19354 x 10886 |
| Touch Pressure Detection | 1024 levels of pressure detected |
| Touch Method | Naked fingers, gloved fingers, soft tip styluses and soft objectes with min. size of 4mm |
| Interface | USB |
| Supported OS | Windows 10 / Windows 8 / Linux / Android / Mac OS X (Third-Party Driver) |
| Power Consumption | MIR55L: 140W (180W max.) (non-Touch) MIR55FFL: 165W (205W max.) (Touch) |
| Operation Time | 12h / day, 7d / week (Attention: Content Guide) |
| Operating Conditons | Storage -20°C to 65°C / Working 0°C to 40°C |
| Dimensions | MIR55L: 1223 x 1034.5 mm (non-Touch) MIR55FFL: 1380 x 953.2 mm (Touch) |
| Border Width | MIR55L: 8/8/8/90 mm (non-Touch) MIR55FFL: 85/85/85/85 mm (Touch) |
| Weight | MIR55L: 40 Kg (non-Touch) MIR55FFL: 36 Kg (Touch) |
| Housing | 1.5mm Aluminium |
| Safety Glass | 3.2mm Safety Glass (front) + 4mm Safety Glass (back) |
| Delivered Contents | Power Cord, USB Cable (Touch), IR Remote Control |
