AVR EDGE

THE RUGGEDIZED AND RELIABLE MULTITOUCH SCREEN SOLUTION FOR PROFESSIONAL USE-CASES.

A TRUE FLAT TOUCH SURFACE

While the front face is covered with a flush security glass, the side bezel can be adjusted in terms of color and material.

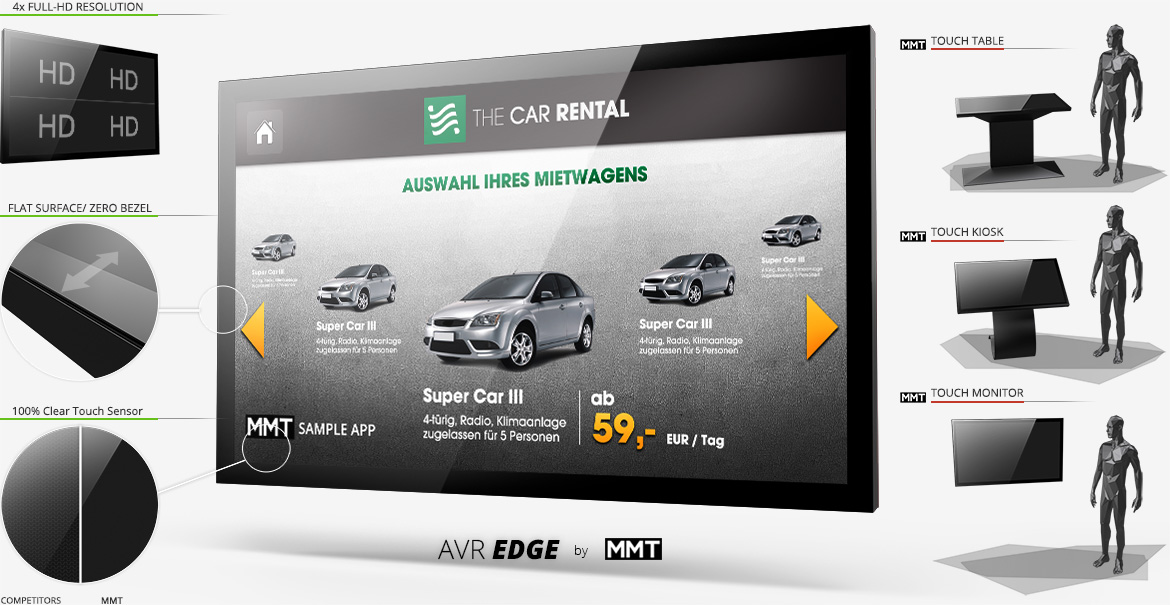

THINK ABOUT THE POSSIBLE USE-CASES

Mount the MultiTouch Monitor on a wall or combine it with a table base for the use as Touch Table or Kiosk.

Integrate a flexible & powerful Computer System

Integrated Computer System

CPU: Intel® Core™ i7 / 3.20 GHz, 4 MB
RAM: 8 GB DDR3 SO-Dimm (max. 16 GB)
Graphics: Intel® HD Graphics 4000
Drive: 256 GB SSD (max. 512 GB SSD)

1x HDMI, 1x JAE, 1x LAN, 2x USB 3.0, 1x Audio, 1x RS-232

Windows 8 Professional 64 bit German and English

Full Connectivity

WIFI For a seamless integration into your network.
BLUETOOTH To connect cordless control devices.
ETHERNET For maximum network security.

2x USB Two external USB ports for a additional devices like webcam, keyboard, barcode printer etc.

Open Pluggable Specification

Completely hidden inside the monitor! This is the new standard, which enables us to integrate the PC System in a smart way.

Future-proof! The customer is able to exchange the system by himself, if a performance upgrade is necessary after a while. No need to buy a completely new monitor.

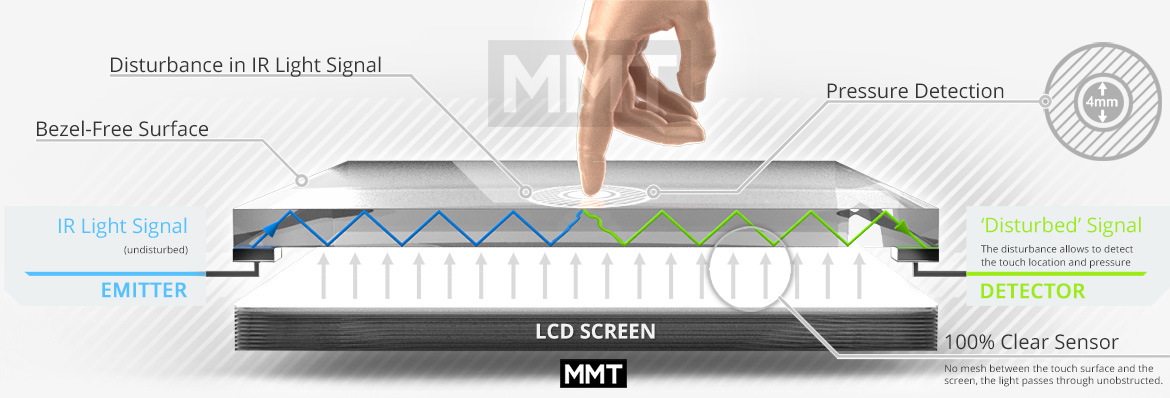

How InGlass Touch Technology works

E X P L O D E D    V I E W

LEARN WHAT'S INSIDE OF THE MONITOR TO UNDERSTAND HOW AWESOME THIS PRODUCT IS MANUFACTURED.

TECHNICAL SPECIFICATIONS

Display diagonal 1067 mm (42")
Resolution 1920 x 1080 px @ 60 Hz
Active Display Area 930 x 523 mm
Panel Type AMVA3 with LED Backlight
Brightness 500 cd/m2
Contrast 4000:1
Aspect Ratio 16:9
Viewing Angle Horizontal 178° / Vertical 178°
Number of Colors 16,7 Mil.
Response Time 8 ms
Connections 1x VGA, 1x DisplayPort, 1x DVI-D, 1x HDMI, RS-232C In/Out RJ45, Speaker Out, Audio In/Out
Controls Keypad
Speakers Built-in 2x 10W RMS
Power Consumption 235 W (max)
Operation Time 24 hours 7 days, real Public Display
Operating Conditons Storage -20°C to 65°C / Working 0°C to 40°C
Dimensions 1022.8 x 616 x 74.4 mm
Weight 22.6 Kg.
Housing 1.5mm Aluminium
Safety Glass 3.2mm Strengthened Safety Glass
Mounting VESA 400x400, M6 (4x)
Built-in PC via OPS (Open Pug­gable Spec­i­fi­ca­tion)
Delivered Contents Power Cord, USB Cable (Touch)
Touch Technology InGlass™ - Total Internal Reflection
Touch Points max. Detects 10 touch points simultaneously
Touch Response Time <15 ms
Finger Touch Accuracy <2 mm
Touch Reporting Rate 100 Hz
Touch Resolution 14884 x 8372
Touch Pressure Detection 1024 levels of pressure detected
Touch Method Naked fingers, gloved fingers, soft tip styluses and soft objectes with min. size of 4mm
Interface USB
Supported OS Windows 10 / Windows 8 / Linux / Android / Mac OS X (Third-Party Driver)
Display diagonal 1397 mm (55")
Resolution 3840 x 2160 px @ 60 Hz
Active Display Area 1209.6 x 680.4 mm
Panel Type AMVA3 with LED Backlight
Brightness 450 cd/m2
Contrast 4000:1
Aspect Ratio 16:9
Viewing Angle Horizontal 178° / Vertical 178°
Number of Colors 16,7 Mil.
Response Time 8 ms
Connections 1x VGA, 1x DisplayPort, 1x DVI-D, 1x HDMI, RS-232C In/Out RJ45, Speaker Out, Audio In/Out
Controls Keypad
Speakers tba.
Power Consumption 300 W (max)
Operation Time 24 hours 7 days, real Public Display
Operating Conditons Storage -20°C to 65°C / Working 0°C to 40°C
Dimensions 1302.6 x 773.4 x 78 mm
Weight 40 Kg.
Housing 1.5mm Aluminium
Safety Glass 3.2mm Strengthened Safety Glass
Mounting VESA 400x400, M6 (4x)
Built-in PC via OPS (Open Pug­gable Spec­i­fi­ca­tion)
Delivered Contents Power Cord, USB Cable (Touch)
Touch Technology InGlass™ - Total Internal Reflection
Touch Points max. Detects 40 touch points simultaneously
Touch Response Time <15 ms
Finger Touch Accuracy <2 mm
Touch Reporting Rate 100 Hz
Touch Resolution 19354 x 10886
Touch Pressure Detection 1024 levels of pressure detected
Touch Method Naked fingers, gloved fingers, soft tip styluses and soft objectes with min. size of 4mm
Interface USB
Supported OS Windows 10 / Windows 8 / Linux / Android / Mac OS X (Third-Party Driver)
Manufacturing, Methods & Technology
