There are several sizes of demo units left from our showroom in Germany, please contact our sales team. Thanks!

This product is out of production and not available anymore.

FULLY INTEGRATED SOLUTION

Commercial Use

Commercial Use

LIEBHERR-based Refrigerator
Unique Branding Options

Transparency & Resolution

Transparency & Resolution

15% Superb Transparency
Full-HD 1920x1080px Resolution

MultiTouch Option

MultiTouch Option

Full Interactivity
32 simultaneous touch points

Ultra High Contrast

Ultra High Contrast

Brilliant & luscious colors
Powerful black pixel covering

Type Transparent LCD
Manufacturer MMT
Transparency 15%
Display diagonal 1193.8 mm (47")
Active Image Area 1039.7 x 584.8 mm
Resolution 1920 x 1080 px @ 60 Hz
Contrast 3.000:1 cd/m2
Aspect Ratio 16:9
Orientation Portrait Mode
Viewing Angle Horizontal 178° / Vertical 178°
Number of Colors 16,7 Mil.
Response Time 8 ms
Interface HDMI
Continuous Operation 24/7
Front Glass Safety Glass 4mm
Operating Systems Windows XP, Windows 7, Windows 8, Mac
OS X, Linux, Android OS

What to expect

The MMT BottleCooler 47“ is based on an industry leading commercial refrigerator for professional use-cases. In combination with transparent display technologies, the bottle cooler is perfect to gain attention by visitors. In addition, we`re offering to equip the device with MultiTouch technology, so the front door can be turned into an interactive transparent screen.

This device was developed to gain additional attention from visitors / viewers. In order to expand marketing and branding activities, the customer can use the complete front door to show pictures, videos, logos, current offers or even do an interactive game like Karaoke or contests.

By playing around with the transparency and using dramatic effects, this professional refrigerator will definitely get the maximum attention on any event. The integrated transparent LCD (see-through screen) can switch from translucent to opaque, so in one second, the viewers can look inside the bottle cooler, in another second they only see the digital content at the LCD screen. That's awesome!

GET IN TOUCH WITH US

You`re interested in Bottle Coolers with a transparent LCD Screen?
Do not hesitate to contact us! In a telephone call, we answer your questions or arrange an appointment.

Type Commercial Use
Manufacturer LIEBHERR
Total Gross Capacity 572 Liter
External Dimensions 750 x 730 x 1640 mm ( B x T x H )
Internal Dimensions 600 x 560 x 1452 mm ( B x T x H )
Climatic Class SN-ST
Operating Conditions +10°C - 38°C
Available Depth Inside 56 cm
Available Width Inside 60 cm
Available Height Inside 145,2 cm
Energy Consumption 1,364 kWh / 24h
Cooling System dynamic
Defrosting automatic
Temperature Range 0°C to +15°C
Housing Material Steel
Housing Color Silver
Door / Lid Material Insltd galzed door, S/Stell frame
Liner Material Moulded polystyrol white
Type Of Control analogue controls
Interior Light LED lighting
Temperate Display external digital
Shelves 6
Adjustable Shelving 5
Shelf Material grid shelves plastic-coated
Shelf Loading 60 Kg.
Door Handle Ergonomic door handle
Self-closing Door Yes
Door Hinge right
Gross Weight 105 Kg.
Net Weight 99 Kg.
Refrigerant R 600a
Noise Level 45 dB(A)
Connected Load 1,5 A
Frequency 50 Hz
Voltage 220-240 V
Warranty 2 Years
Speakers Optional BOSE Sound System with additional base or top construction
Delivered Contents Power Cord x2, IR Remote Control, Batteries
Delivered Contents Touch Version Power Cord x3, Power Supply, IR Remote Control, Batteries, USB
Cable
Supported Countries United Arab Emirates, Austria, Bosnia and Herzegovina, Belgium, Bulgaria, Belarus, Switzerland, Cyprus, Czech Republic, Germany, Denmark, Estonia, Egypt, Spain, Finland, France, Greece, Croatia, Hungary, Ireland, Israel, Iraq, Italy, Lebanon, Lithuania, Luxembourg, Latvia, Morocco, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Sweden, Slovenia, Slovakia, Turkey, Ukraine, South Africa

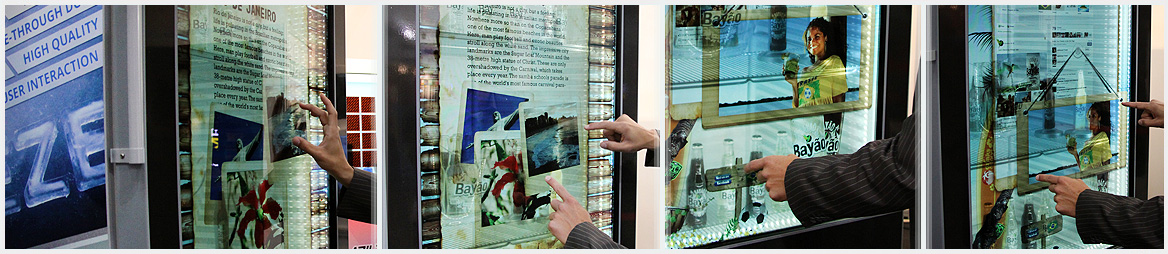

INTERACTIVITY AT ITS BEST

CELL IMAGING TECHNOLOGY

  • True MultiTouch with up to 32 touch points
  • up to 10 independent Light Processors (depends on size)
  • Ultra-precise touch recognition.
  • Object size and shape recognition
  • Water-spill proof
Touch Points max. Detects 32+ touch points simultaneously
Sample Rate Up to 200 fps
Report Resolution 32768 x 32768
Finger Touch Accuracy 2.7 mm
Activation Force No pressure required
Touch Duration Unlimited
Touch Method Naked fingers, gloved fingers or any other stylus with a minimum of 3mm size
shape recognition (fist, palm)
Object recognition Object shape recognition
Calibration 4-Point Calibration
Interface USB
Software Development PQ Labs Multi-Touch SDK (C / WPF / C# / Flash / Java)
Surface SDK
Windows Native Touch
TUIO
Supported OS Windows 8/7/Vista/XP, Mac OS X, Ubuntu/Fedora, Android
