WHY CHOOSE THE ALVARO GIANT

True MultiTouch

True MultiTouch

50 simultaneous touch points
Suitable for Multi-User cases

Ultra High-Definition

Ultra High-Definition

Quad (4) times Full-HD resolution: 3840 x 2160 px

Horizontal or Vertical Use

Horizontal or Vertical Use

A modern ventilation technology for continuous use in horizontal orientation

MultiTouch Table Feature

MultiTouch Table Feature

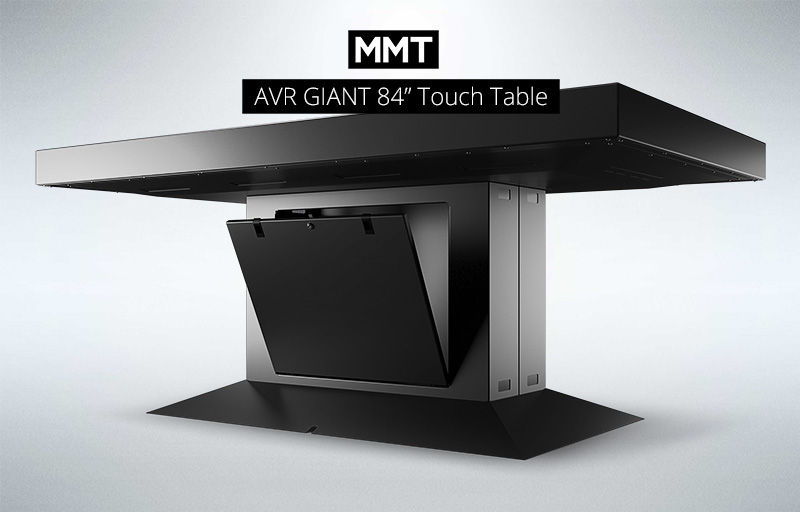

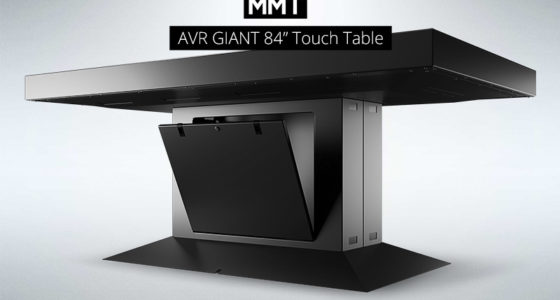

Combined with our Table Base, the device can be used as interactive touch table

A MASSIVE EXPERIENCE

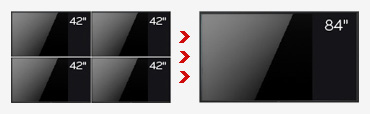

84 Inch means an active surface of 2140 mm diagonal. This is like the combination of four 42 Inch monitors.
84 Inch is like a combination of four 42 inch screens

The device can be used as single MultiTouch monitor or as an interactive tabletop in combination with a table base.

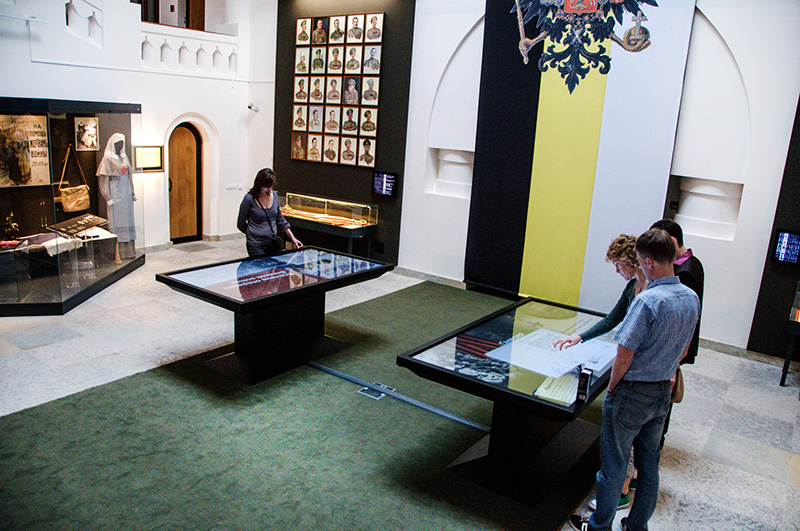

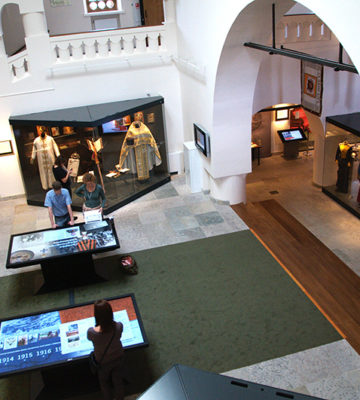

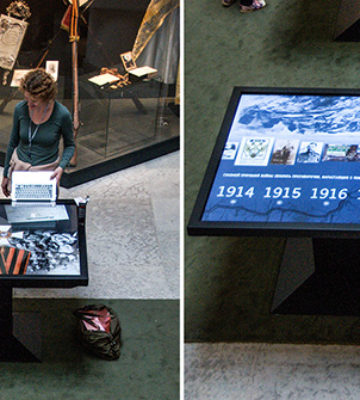

85 Inch Alvaro Giant can be used as Single Display, Touch Wall or Interactive MultiTouch Table

FEATURED

How the world sees this product.
  • The 84-inch table is designed to be used by up to 50 fingers at once, letting groups paw around interactive exhibits on a large scale.
    Engadget
  • If your iPad or Nexus 10 simply isn’t big enough or high-res enough, MyMultitouch has an 84-inch beast to offer instead!
    SlashGear
  • Der Alvaro GIANT vereint brillante Bildqualität mit Multi-User MultiTouch Technologie (50 gleichzeitige Eingaben).
    Ultra-HDTV.net

TECHNICAL SPECIFICATIONS

Display diagonal2140 mm (84")
Resolution3840 x 2160 px @ 60 Hz
Active Display Area1879 x 1064 mm
Display Type / HD TypeEdge-LED / 4K Ultra-HD
Brightness500 cd/m2
Contrast1400:1 cd/m2
Aspect Ratio16:9
Viewing AngleHorizontal 176° / Vertical 176°
Number of Colors1070 M
Response Time8 ms
Connections1x DisplayPort, 2x DVI-D, 4x HDMI, RS-232C In/Out
RJ45, Speaker Out, Audio In/Out
ControlsKeypad, IR remote control
Power Consumption570 W (typical)
Power SupplyAC input voltage 110 - 240 V
AC input frequency 50/60 Hz
Operation Time24 hours 7 days, real Public Display
Dimensions1995 x 1180 mm
Bezel62 mm
Weight101 Kg.
MaterialRuggedized metal housing
1.5mm strong
Safety GlassMighty Glass - 5mm, ULTRA-SMOOTH (low-friction)
ColoringPowder-coated black
custom RAL Color on request
SpeakersBuilt-in 2x 10W
MountingVESA 500x400
OptionsTable stand, Vertical stand
Base construction

CELL IMAGING TECHNOLOGY

  • True MultiTouch with up to 32 touch points
  • 1078 sensors and 10 independent Light Processors
  • Ultra-precise touch recognition.
  • Object size and shape recognition
Touch Points max. Detects 50 touch points simultaneously
Sample RateUp to 250 fps
Report Resolution32768 x 32768
Finger Touch Accuracy0.5 mm
Activation ForceNo pressure required
Touch DurationUnlimited
Touch MethodNaked fingers, gloved fingers or any other stylus with a minimum of 3mm size
shape recognition (fist, palm)
Object recognitionObject shape recognition
Calibration4-Point Calibration
InterfaceUSB
Software DevelopmentPQ Labs Multi-Touch SDK (C / WPF / C# / Flash / Java)
Surface SDK
Windows Native Touch
TUIO
Supported OSWindows 8/7/Vista/XP, Mac OS X, Ubuntu/Fedora, Android

OK! HERE'S HOW TO CUSTOMIZE THIS PRODUCT

CHOOSE CONSTRUCTION TYPE

Standalone Type:
Wall-mounted or in combination with a vertical stand

MultiTouch Table:
In combination with a table base as horizontal surface

CHOOSE SHAPE & COLOR

Shape customization:
Edged, rounded, oval or even more custom?

Coloring:
Powder-coated black or any RAL-Color

FINALIZE

It's not incredible enough? Add a superior sound system or PC!
